VW Upright Fan Shroud - without Heater Ducts - Black

This product fits your {{ determineShortenedVehicleText(customerFitment) }}

This product does not fit a stock {{ determineShortenedVehicleText(customerFitment) }}

This product requires modifications to fit your {{ determineShortenedVehicleText(customerFitment) }}:

This product is made for custom applications. Modifications may be necessary to use this on a stock vehicle.

Part Number: {{ product.code }}

{{ product.customfield_values.customfields.yotpoReviewAvg.toFixed(1) }} ({{ product.customfield_values.customfields.yotpoReviewCount }} {{ (product.customfield_values.customfields.yotpoReviewCount === 1) ? 'review' : 'reviews' }})

{{ parts.length - backorderedParts.length }} of the {{ parts.length }} parts in this kit are in stock. This kit will only ship when all items are in stock. The following items are currently backordered:

{{ parts.length - backorderedParts.length }} of the {{ parts.length }} parts in this kit will ship now. The following will ship later:

{{ inventoryMessage }}Notify me instead

{{ backorderedPart.partCode }} - Back In Stock Date TBD {{ backorderedPart.partCode }} - Expected {{ backorderedPart.partETA }}

You will receive an email when this product comes back in stock.

Notification Email

Cancel

Your email has been saved and we will contact you when this product comes back in stock.

({{ calculatedDiscountPct }} off)

Discounts

{{ discount.descrip }}(-{{ discount.formatted_discount }})

Add to Cart

Select Wishlist

New Wishlist Will Be Created

Cancel

Saved to Wishlist View Wishlist

Save to Wish List

Sign into your JBugs customer account to save this product to your wish list. Sign In Create Account

Save to Wish List

This item qualifies for free shipping to the contiguous US

Free Shipping for orders over $100

$ 30 Day Price Protection

90 Day Returns

Description

Fits
Years
Tech
Tips
Shipping & Returns
Q&A

Shipping & Returns

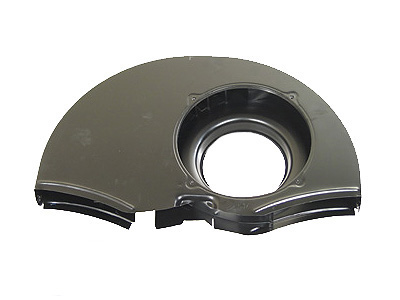

This VW fan shround is designed for 1300-1600cc Type 1, engines with an upright oil cooler. This fan shround comes with in a satin black finish and features 7 internal air directional baffles. This fan shroud is designed for cars without heat as there are no heater duct outlets to connect to the heater box. With an air-cooled Volkswagen engine, the fan shroud is very important. The fan pulls in air while the shroud creates a channeling effect to disperse it towards the oil cooler, cylinder heads, pistons & cylinders. If you are eliminating heater boxes and opting to install J-tubes this fan shroud eliminates the need air ducts for a cleaner look.

Upright Fan Shrouds use a 30mm fan (part number 131119031) to push air through the shroud. Make sure to use the appropriate sized fan as the later model 36mm wide fan will not fit.

NOTE: 36 Horse Power refers to the style and shape of the fan shroud. This fan shroud is made for 1300-1600cc Type 1 based aircooled engines. The best fitting engine tin is the original fan shroud, but it does not work with dual carburetors and it is not made. You have to re-use your originals if you have it, or find it at a junk yard or swap meet.

Our Expert's Take:

When it comes to engine tin, we always prefer original VW tin to aftermarket tin. For our 1971 Super Beetle restoration, we had our pick of the warehouse for the most part, and we used all original engine tin. Sometimes getting ahold of original pieces isn't feasible so there is a place for aftermarket engine tin. Aftermarket tin does not fit as well as original tin, period. Trimming, clearancing and occasionally drilling may be required to get the engine tin components to mount to the engine and other engine tin pieces. With work, the tin can be made to fit and be effective, but do not expect an OEM fit.

Sam

Aftermarket fan shrouds may have a gap at either side at the cylinder shrouds. The EMPI Aluminum Shroud Spacer Kit can be installed to ensure a tight fit for proper cooling.

California Prop 65 Warning: Cancer and Reproductive Harm

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.

VW Beetle

Sedan

1954 - 1977

Ragtop

1954 - 1963

Sunroof

1964 - 1977

Convertible

1954 - 1970

VW Super Beetle

Sedan

1971 - 1975

Convertible

1971 - 1979

VW Karmann Ghia

Coupe

1956 - 1974

Convertible

1957 - 1974

VW Type II (Bus)

Bus

1955 - 1979

Single Cab

1955 - 1979

Double Cab

1958 - 1979

1981 - 1982

VW Type 3

Squareback

1962 - 1973

Notchback

1962 - 1973

Fastback

1966 - 1973

VW Thing

Thing

1973 - 1974

Check what fan shroud you need before you buy. There's a good chance the parts which originally came on your vehicle have been swapped in the last 50 years. Both fan shrouds look similar from the front, but the back side reveals how these fan shrouds direct air through their oil coolers. Take a gander behind your fan shroud. Is there a DOGHOUSE attached to the back?
