VW Tech Article: I.R.S. Axle Diagram
Independent Rear Suspension Diagram
1969-79 Beetle| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
113517279 | C.V. Joint Circlip | |
| 2 |
|
87-9916 | C.V. Joint | |
| 3 |
|
9994 | C.V. Joint Boot | |
| 4 |
|
87-5080 | CV Joint Torque Distribution Washers | |
| 5 |
|
90-6900 | C.V. Axle | |
| 6 |
|
16-2409 | C.V. Bolt | |
| 7 |
|
16-2308 | Stub Axle | |
| 8 |
|
16-5107 | Control Arm Bushings (Super Beetle 1971-73) | |
| 8 |
|
16-5108 | Control Arm Bushings (Super Beetle 1974-79) | |
| 9 |
|
Not Available | Control Arm Bolt |
Not Available
|
| 10 |
|
311-191 | Suspension Stops / Snubbers (Rubber) | |
| 10 |
|
16-5125 | Suspension Stops / Snubbers (Urethane) | |
| 11 |
|
Not Available | Torsion Bar |
Not Available
|
| 12 |
|
16-5131 | Spring Plate Bushing Inner (Knobby) | |
| 13 |
|
Not Available | Spring Plate Adjustable (1969-71) |
Not Available
|
| 13 |
|
18-1075 | Spring Plate Adjustable (1972-79) | |
| 14 |
|
16-5134 | Spring Plate Bushing Outer (Round) | |
| 15 |
|
9569 | I.R.S. Spring Plate Caps | |
| 16 |
|
113501315G | Axle Seal | |
| 17 |
|
16-2400 | I.R.S. Axle Spacers | |
| 18 |
|
N0123191 | Wheel Bearing Circlip | |
| 19 |
|
N0123191 | Rear Inner Bearing for I.R.S. | |
| 20 |
|
113501277A | Rear Outer Bearing for I.R.S. | |
| 21 |
|

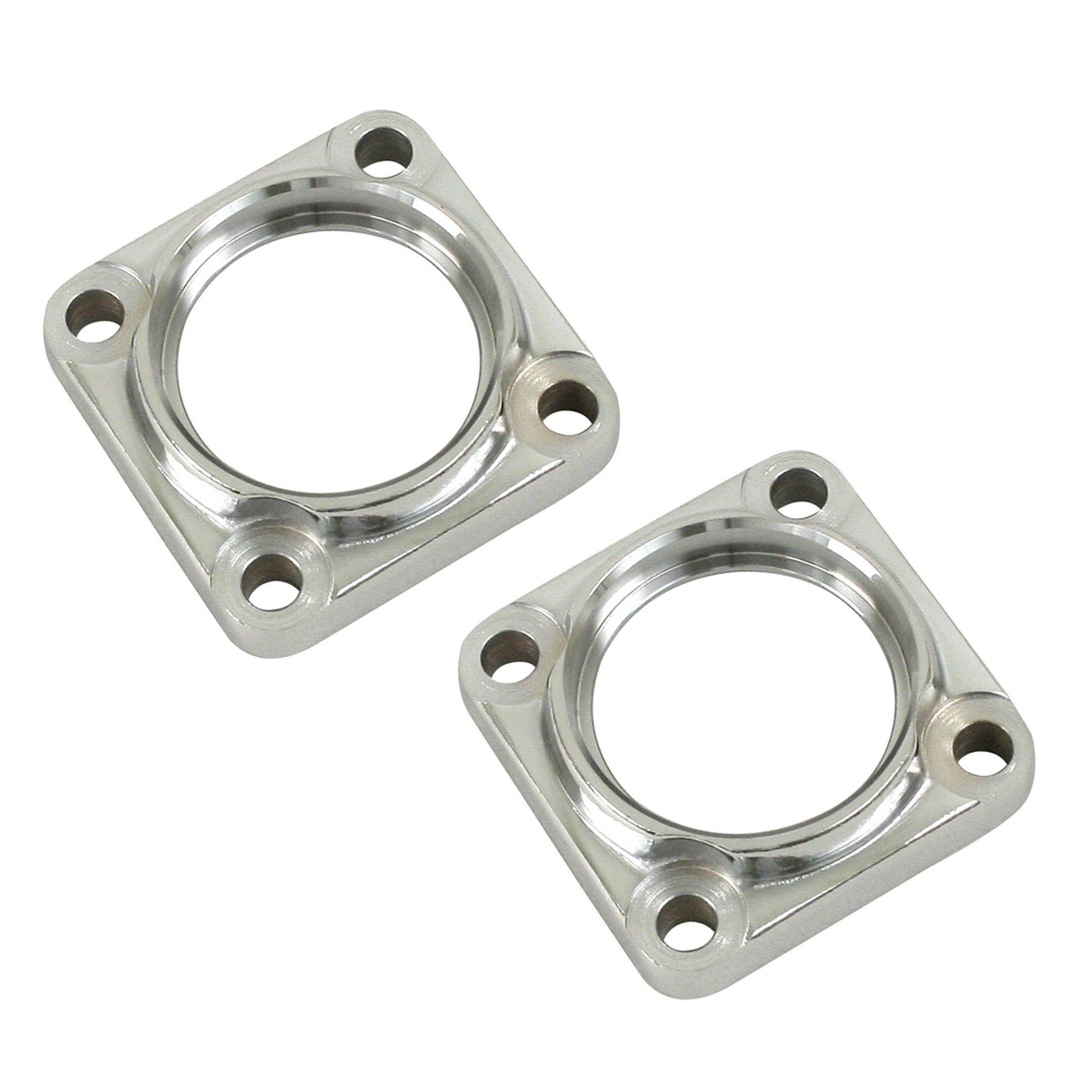

17-2699 | I.R.S. Bearing Cover | |
| 22 |
|
111598051A | Axle Seal Kit | |
| 23 |
|
113501615JI | 4 Lug Rear Drum (Made in Italy) | |
| 23 |
|
113501615J | 4 Lug Rear Drum (Made in Germany) | |
| 24 |
|
311501221 | Axle Nut (Standard) | |
| 24 |
|
16-2420 | Axle Nut (Chrome) | |
| 25 |
|
N125481 | Cotter Pin |
