VW Tech Article: Swing Axle Diagram
Swing Axle Diagram
1954-68 Beetle| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
111598021AGR | Swing Axle Boot(German) | |
| 1 |
|
9984 | Swing Axle Boot(EMPI) | |
| 2 |
|
16-2230 | 1961-66 Swing Axle | |
| 2 |
|
16-2231 | 1968 Swing Axle |
|
| 3 |
|
311-191 | Rubber Suspension Stops(Snubbers) Pair | |
| 3 |
|
16-5125 | Urethane Suspension Stops(Snubbers) Pair | |
| 4 |
|
113513031GBR | Rear Oil Shock | |
| 4 |
|
343144 | Rear Gas Shock | |
| 4 |
|
KG5529 | Rear Gas Shock (Adjustable) | |
| 5 |
|
16-9923 | Swing Axle Bearing Housing | |
| 6 |
|
Not Available | Torsion Bar |
Not Available
|
| 7 |
|
6588-13 | Spring Plate Bushing (Inner 1954-59) | |
| 7 |
|
16-5131 | Spring Plate Bushing (Inner 1960-68) | |
| 7 & 8 |
|
111-245-L-R | Spring Plate Bushing Set (1954-59) |
|
| 7 & 8 |
|
113-245-L-R | Spring Plate Bushing Set (1960-68) | |
| 8 |
|
6588-13 | Spring Plate Bushing (Outer 1954-59) | |
| 8 |
|
16-5130 | Spring Plate Bushing (Outer 1960-68) | |
| 9 |
|
9545 | Spring Plate Caps/Torsion End Plate | |
| 9 |
|
17-2696 | Spring Plate Caps/Torsion End Plate (Stainless) | |
| 10 |
|
16-2401 | Axle Spacers (Inner & Outer Set) | |
| 11 |
|
311501283 | Wheel Bearing for Swing Axle | |
| 12 |
|
111598051A | Rear Axle Seal Kit | |
| 13 |
|
113501615DI | 5 Lug Rear Brake Drum 195-67 (Made in Italy) | |
| 13 |
|
113501615D | 5 Lug Rear Brake Drum 195-67 (Made in Germany) | |
| 13 |
|
113501615JI | 4 Lug Rear Brake Drum 1968 (Made in Italy) | |

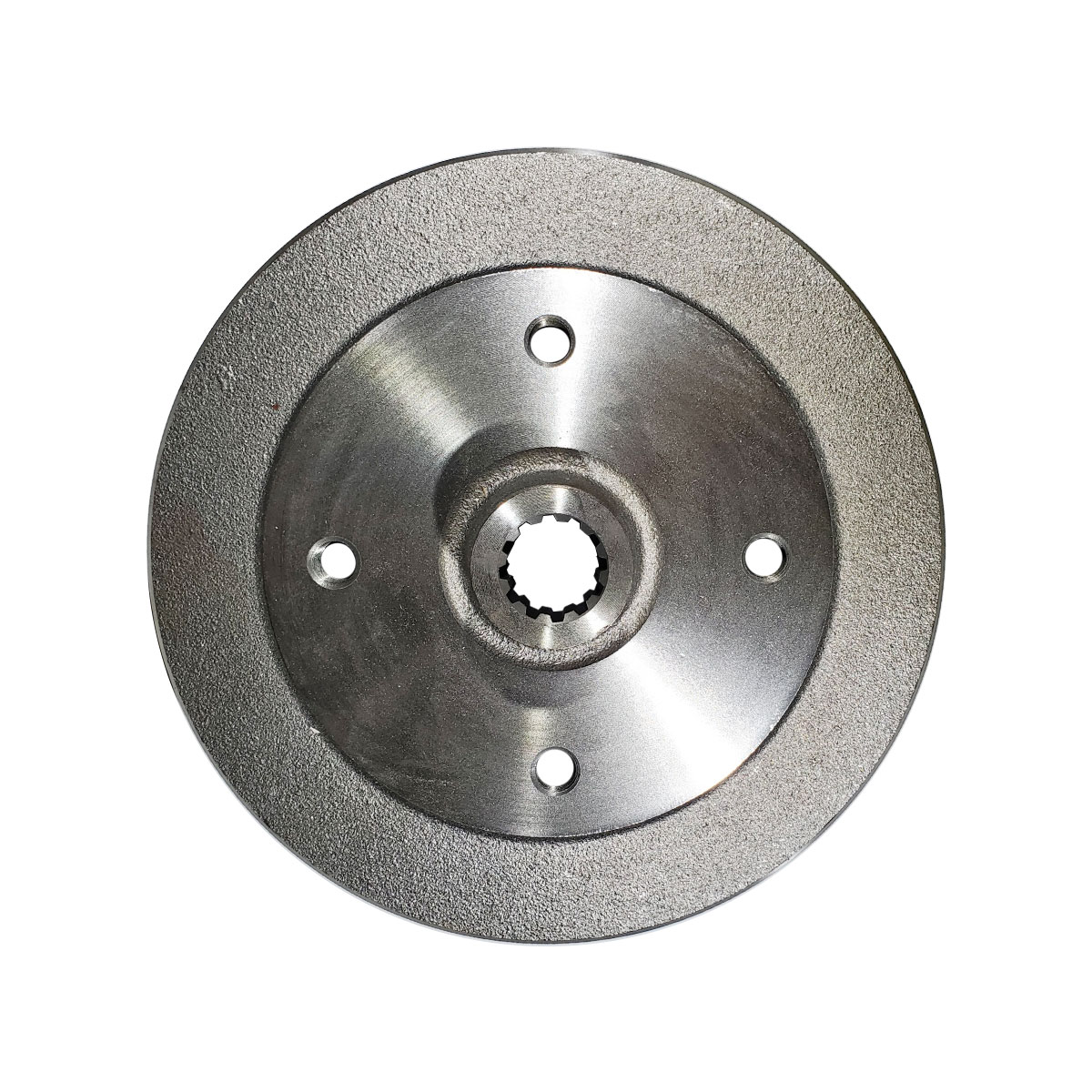

| 13 |
|
113501615J | 4 Lug Rear Brake Drum 1968 (Made in Germany) | |
| 14 |
|
311501221 | Rear Axle Nut 36mm (Standard) | |
| 14 |
|
16-2420 | Rear Axle Nut 36mm (Chrome) | |
| 15 |
|
N125481 | Axle Nut Cotter Pins Pair |
