VW Tech Article: Cooling Assembly Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
9117 | Pulley Nut & Washer for Alternator / Generator Pulley | |
| 2 |
|
111903131A-10 | Alternator/Generator Pulley Shims - 10 Pieces | |
| 3 |
|
9191 | Alternator/ Generator Pulley - 12 Volt (Chrome) | |
| 4 |
|
113X912 | Alternator Fan Belt - 11.3 X 912 | |
| 4 |
|
95X905 | Generator Fan Belt - 9.5 X 905 | |
| 5 |
|
113105251G | 1961-79 Beetle Engine Crank Pulley | |
| 6 |
|
AL82N | Alternator - 55 Amp (Bosch) | |
| 6 |
|
AL82NEC | Alternator - 55 Amp (Aftermarket) | |
| 6 |
|
9453-7 | Alternator - 75 Amp (Chrome) | |
| 6 |
|
9463-7 | Alternator - 90 Amp (Chrome) | |
| 6 |
|

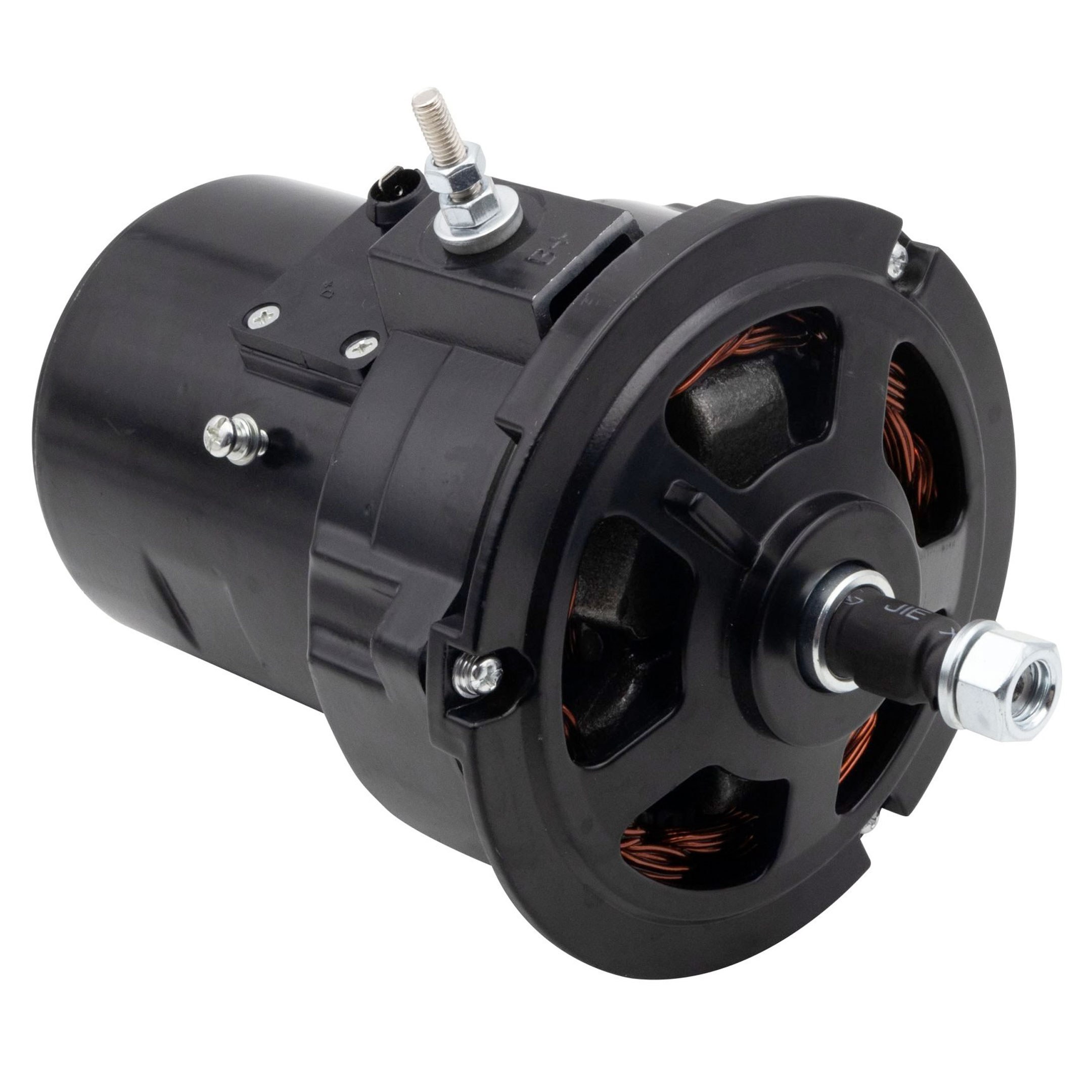

00-9486-7 | Alternator - 55 Amp (Black) | |
| 6 |
|
00-9487-7 | Alternator - 75 Amp (Black) |
|
| 6 |
|
00-9488-7 | Alternator - 90 Amp (Black) | |
| 7 |
|
GR15N | Generator - 30 Amp | |
| 8 |
|
98-0111 | Alternator / Generator Pulley Woodruff Keys | |
| 9 |
|
113101219 | Alternator Stand Gasket Each | |
| 10 |
|
113101221B | Oil Deflector Plate | |
| 11 |
|
9194 | Alternator / Generator Stand (Aluminum) | |
| 11 |
|
8991 | Alternator / Generator Stand (Chrome) | |
| 12 |
|
9058 | Alternator/ Generator Mounting Strap (Zinc) | |

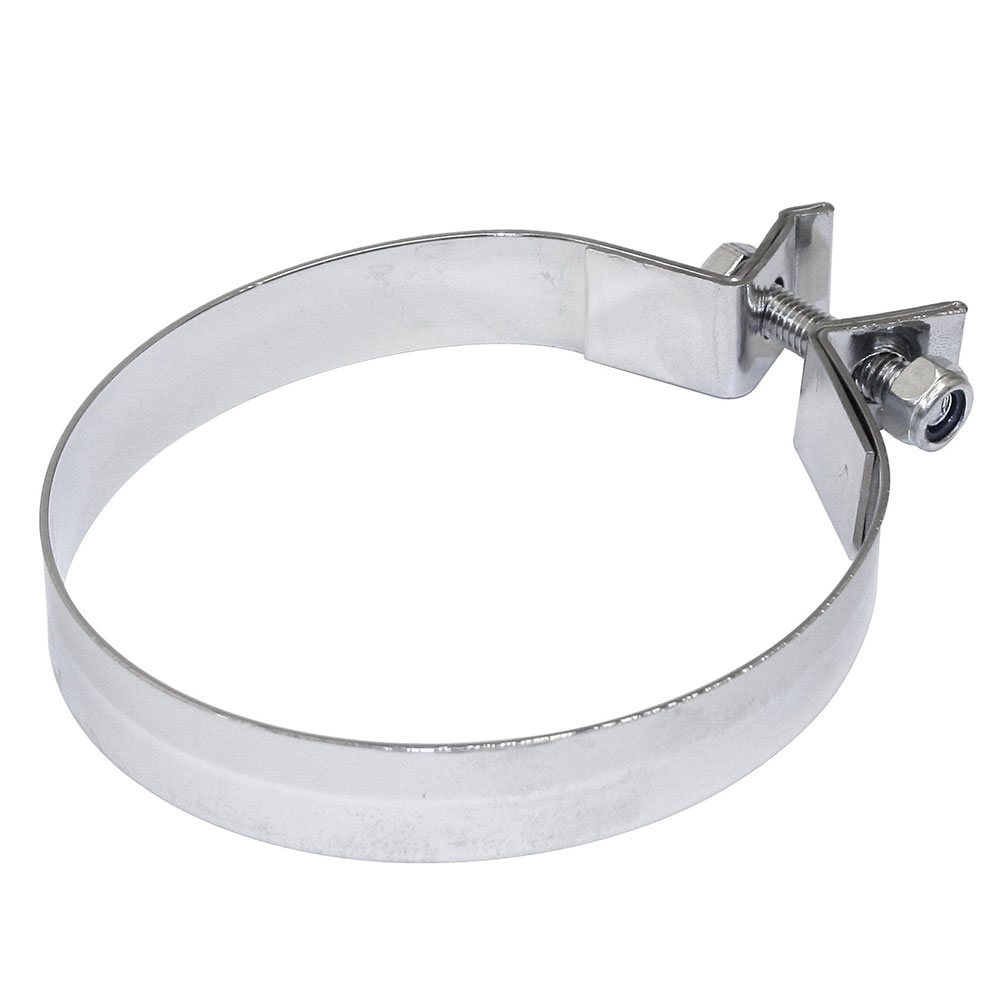

| 12 |
|
8903 | Alternator/ Generator Mounting Strap (Chrome) | |
| 13 |
|
9057 | Alternator/ Generator Backing Plate - 3 Piece Kit (Black) | |
| 13 |
|
9056 | Alternator/ Generator Backing Plate - 3 Piece Kit (Chrome) | |

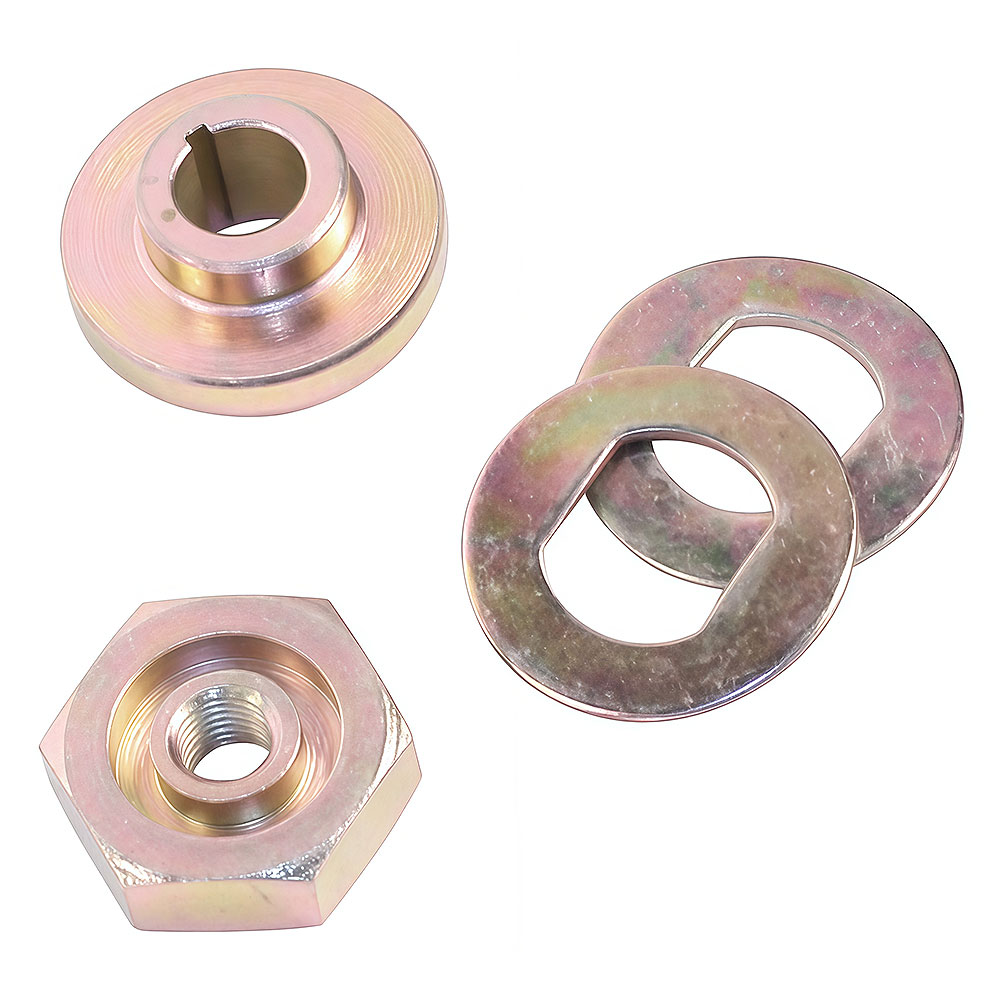

| 14 |
|
8898 | Cooling Fan Hub Kit | |
| 14 |
|
111198123A | Cooling Fan Hub Kit (Zinc) | |
| 15 |
|
113119031B | Cooling Fan (Doghouse Shroud) | |
| 16 |
|
8672 | Doghouse Fan Shroud (Black - No Ducts) | |
| 16 |
|
8673 | Doghouse Fan Shroud (Black - With Ducts) | |
| 16 |
|
8887 | Doghouse Fan Shroud (Chrome - No Ducts) | |
| 16 |
|
8890 | Doghouse Fan Shroud (Chrome - With Ducts) | |
| 17 |
|
8884 | Doghouse Tin (Black) | |
| 17 |
|
8896 | Doghouse Tin (Chrome) | |
| 18 |
|
8952 | Front Engine Tin- Doghouse Style (Black) | |
| 18 |
|
8930 | Front Engine Tin- Doghouse Style (Chrome) | |
| 19 |
|
111-741G | Firewall Seal | |
| 20 |
|
131119031 | Cooling Fan (Upright Shroud) | |
| 21 |
|
8951 | Front Engine Tin- Upright Style (Black) | |
| 21 |
|
8945 | Front Engine Tin- Upright Style (Chrome) |
