VW Tech Article: Heater Duct Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
028129087AS | Heater Hose - From Fan Shroud - Silver | |
| 1 |
|
028129087A | Heater Hose - From Fan Shroud - Black | |
| 2 |
|
MH28 | Metric Worm Drive Hose Clamp - 40-60mm | |
| 3 |
|
111-586 | 1963-67 Fresh Air Hose Base Seals - Pair | |
| 3 |
|
111-586B | 1968-79 Fresh Air Hose Base Seals - Pair | |
| 4 |
|
113255165 | Connection Pipe - Fresh Air Hose to Heater Box | |
| 5 |
|
113255341A | Exhaust Clamp - Muffler to Heater Box | |
| 6 |
|
043298103 | Heater Box Lever Kit - Left/Driver | |
| 7 |
|
043255105F | 1963-74 Heater Box - Left/Driver | |
| 7 |
|
043255105G | 1975-79 Heater Box - Left/Driver | |
| 8 |
|
043298104 | Heater Box Lever Kit - Right/Passenger | |
| 9 |
|
043255106F | 1963-74 Heater Box - Right/Passenger | |
| 9 |
|
043255106G | 1975-79 Heater Box - Right/Passenger | |
| 10 |
|
113255355C | 1954-64 Heater Box to Body Hose - Either Side | |
| 10 |
|

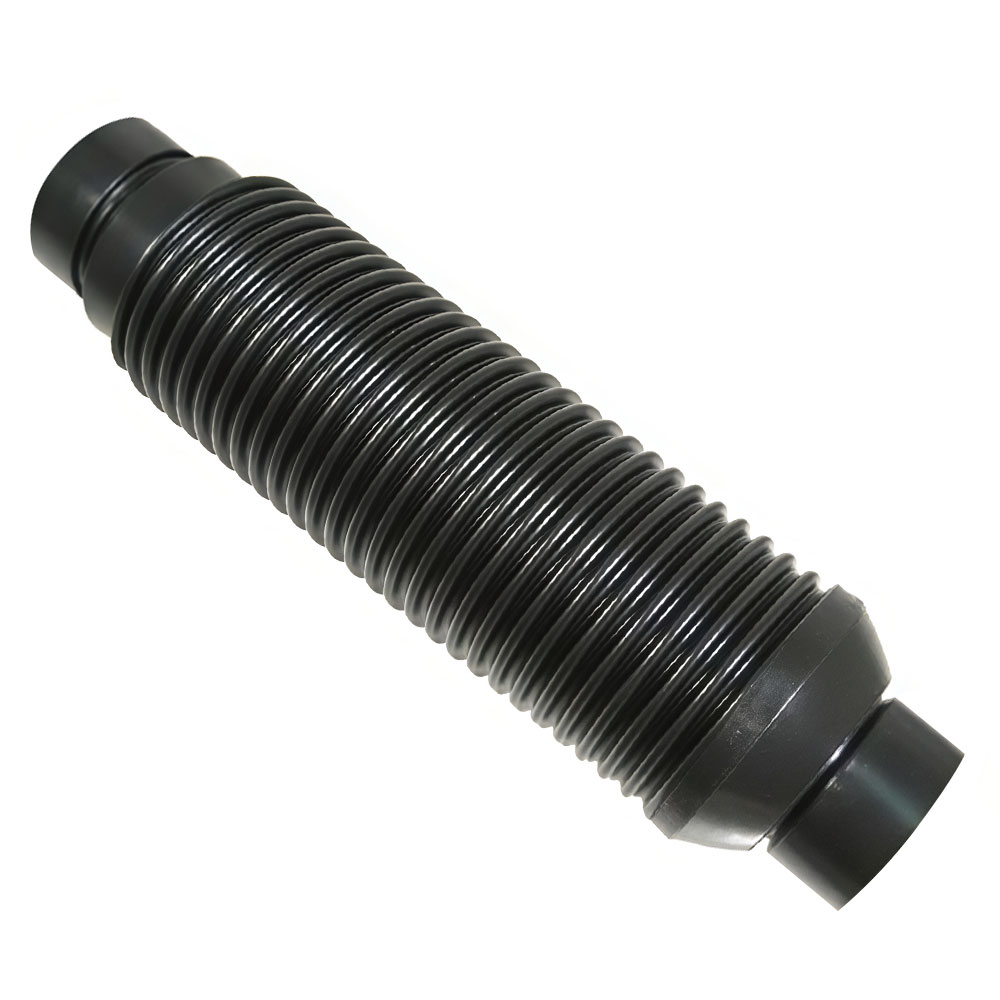

113255355D | 1965-67 Heater Box to Body Hose - Either Side | |
| 10 |
|
113255355M | 1968-72 Heater Box to Body Hose - Either Side | |
| 10 |
|

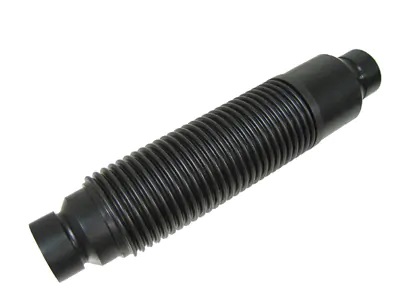

043255355A | 1973-79 Heater Box to Body Hose - Either Side | |
| 11 |
|
MH36 | Metric Worm Drive Hose Clamp - 50-70mm | |
| 12 |
|
111711713 | 1965-72 Beetle Heater cable to Rear Foot Wells | |
| 12 |
|
111711713A | 1973-79 Beetle Heater cable to Rear Foot Wells | |
| 13 |
|
111711629B |
1956-63 Beetle Heater cable to Heater Box Levers 3670mm (to Chassis 5 225 042) |
|
| 13 |
|
111711629E |
1963-64 Beetle Heater cable to Heater Box Levers 3660mm (from Chassis 5 225 043) |
|
| 13 |
|
111711717A |
1965-72 Beetle Heater cable to Heater Box Levers (with OUT blower motor) |
|
| 13 |
|
111711717D |
1973-78 Beetle Heater cable to Heater Box Levers (with OUT blower motor) |
|
| 13 |
|
133711717 |
1973-74 Super Beetle Heater cable to Heater Box Levers (WITH blower motor) |
|
| 13 |
|
133711717B | 1975-79 Super Beetle Heater cable to Heater Box Levers | |
| 14 |
|
113-411 | Heater Cable Tube Boots Pair - All Years | |
| 15 |
|
131798349A | 1965-79 Heater Control Lever Installation Kit |
|
| 16 |
|
34-9104 |
Heat Shield Pad (Cut to fit template in product description) |
|
| 17 |
|
10-1021-VINYL | 1963-77 Beetle & Super Beetle Sedan Kick Panels |
|
| 18 |
|
111801043B | 1958-68 VW Beetle Hardtop Heater Channel Assembly - Left/Driver | |
| 18 |
|
111801045L | 1969-77 VW Beetle Hardtop Heater Channel Assembly - Left/Driver | |
| 18 |
|
111801045K | 1971-79 VW Super Beetle Hardtop/Convertible Heater Channel Assembly - Left/Driver | |
| 19 |
|
111801044B | 1958-68 VW Beetle Hardtop Heater Channel Assembly - Right/Passenger | |
| 19 |
|
111801046L | 1969-77 VW Beetle Hardtop Heater Channel Assembly - Right/Passenger | |
| 19 |
|
111801046K | 1971-79 VW Super Beetle Hardtop/Convertible Heater Channel Assembly - Right/Passenger | |
| 20 |
|
113819723A | 1955-65 Beetle Defroster Vent Hose 32mm | |
| 20 |
|
113819723 | 1966-68 Beetle Defroster Vent Hose 38mm | |
| 20 |
|
133819365 | 1969-70 Beetle Defroster Vent Hose 47mm | |
| 21 |
|
113255463 | 1966-68 Beetle Defroster Y-Connector | |
| 21 |
|
113255463A | 1969-77 Beetle Defroster Y-Connector |
