VW Tech Article: Engine Tin Diagram
Choosing the correct engine tin is easy once you know what to look for. It's important to know if you have a upright oil cooler fan shroud, or a doghouse style fan shroud. You'll also want to know if you have a single port heads or dual port heads in order to select the right cylinder shrouds for your engine.
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
8951 | Front Engine Tin - Early Style - Black | |
| 1 |
|
8945 | Front Engine Tin - Early Style - Chrome | |
| 2 |
|
8671 | Upright Fan Shroud - with Heater Ducts - Black | |
| 2 |
|
8670 | Upright Fan Shroud - without Heater Ducts - Black | |
| 2 |
|
8892 | Upright Fan Shroud - with Heater Ducts - Chrome | |
| 2 |
|
8882 | Upright Fan Shroud - without Heater Ducts - Chrome | |
| 3 |
|
8952 | Front Engine Tin - Late Doghouse Style - Black | |
| 3 |
|
8930 | Front Engine Tin - Late Doghouse Style - Chrome | |
| 4 |
|
8884 | Doghouse Tin - Black | |
| 4 |
|
8896 | Doghouse Tin - Chrome | |
| 5 |
|
8673 | Doghouse Fan Shroud - with Heater Ducts - Black | |
| 5 |
|
8672 | Doghouse Fan Shroud - without Heater Ducts - Black | |
| 5 |
|
8890 | Doghouse Fan Shroud - with Heater Ducts - Chrome | |
| 5 |
|
8887 | Doghouse Fan Shroud - without Heater Ducts - Chrome | |
| 6 |
|
9057 | 12 Volt Alternator/ Generator Backing Plate - Black | |
| 6 |
|
9056 | 12 Volt Alternator/ Generator Backing Plate - Chrome | |
| 7 |
|
311119317A | Cylinder Deflector Tin (mounts under cylinders) | |
| 8 |
|
131119358 | Cylinder Heat Deflector Tin Right | |
| 9 |
|
8935 | Engine Pulley Breast Plate - Black | |
| 9 |
|
8960 | Engine Pulley Breast Plate - Chrome | |
| 10 |
|
8938 | Rear Engine Tin - Heater Holes - Heat Riser Cutouts - Black | |
| 10 |
|
8936 | Rear Engine Tin - Heater Holes - No Heat Riser Cutouts - Black | |
| 10 |
|
8937 | Rear Engine Tin - No Heater Holes - Heat Riser Cutouts - Black | |
| 10 |
|
8939 | Rear Engine Tin - No Heater Holes - No Heat Riser Cutouts - Black | |
| 10 |
|
8940 | Rear Engine Tin - Heater Holes - Heat Riser Cutouts - Chrome | |
| 10 |
|
8941 | Rear Engine Tin - Heater Holes - No Heat Riser Cutouts - Chrome | |
| 10 |
|
8943 | Rear Engine Tin - No Heater Holes - Heat Riser Cutouts - Chrome | |
| 10 |
|
8942 | Rear Engine Tin - No Heater Holes - No Heat Riser Cutouts - Chrome | |
| 11 |
|
8948 | Heater Box Engine Tin - Black | |
| 11 |
|
8949 | Heater Box Engine Tin - Chrome | |
| 12 |
|
Not Available | Heat Riser Tin |
Not Available
|
| 13 |
|
Not Available | Heat Riser Tin Insulation |
Not Available
|
| 14 |
|
131119357 | Cylinder Heat Deflector Tin Left | |
| 15 |
|
8990 | Dual Port Cylinder Tin - Black | |
| 15 |
|
9063 | Dual Port Cylinder Tin - Chrome | |
| 16 |
|

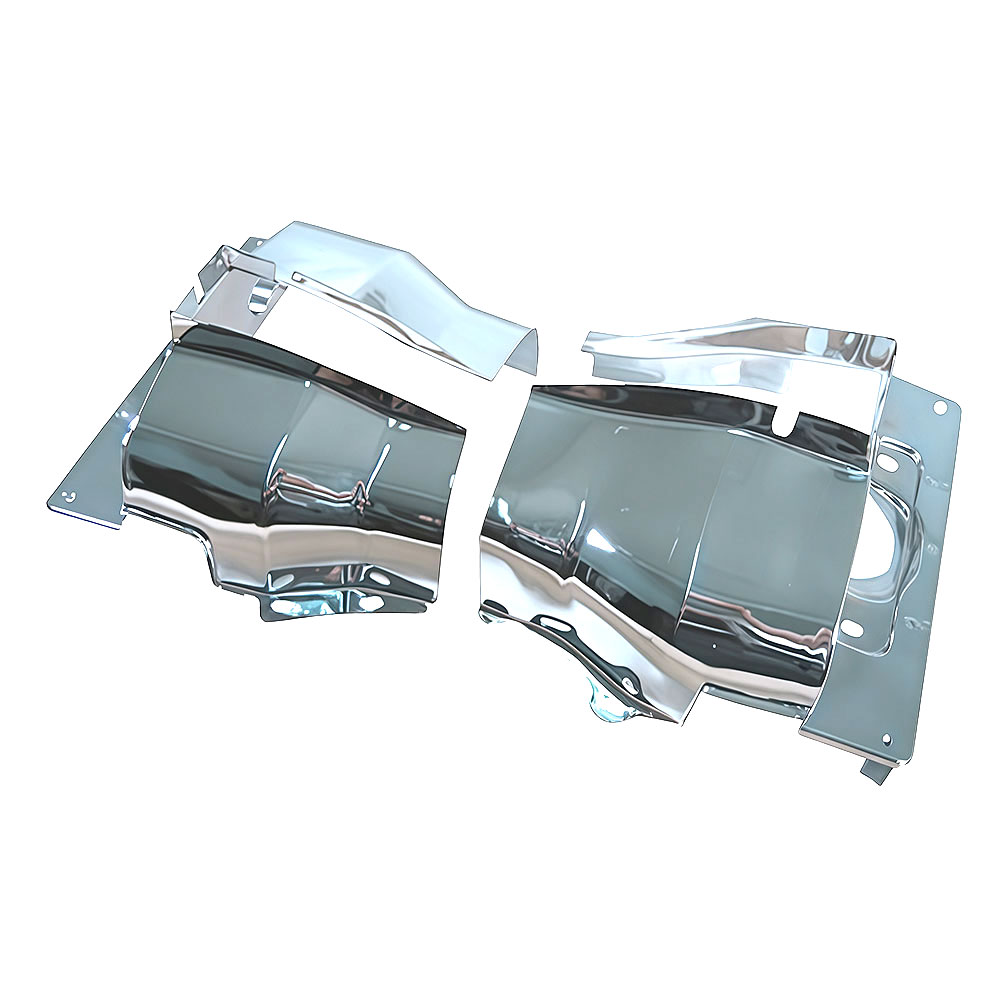

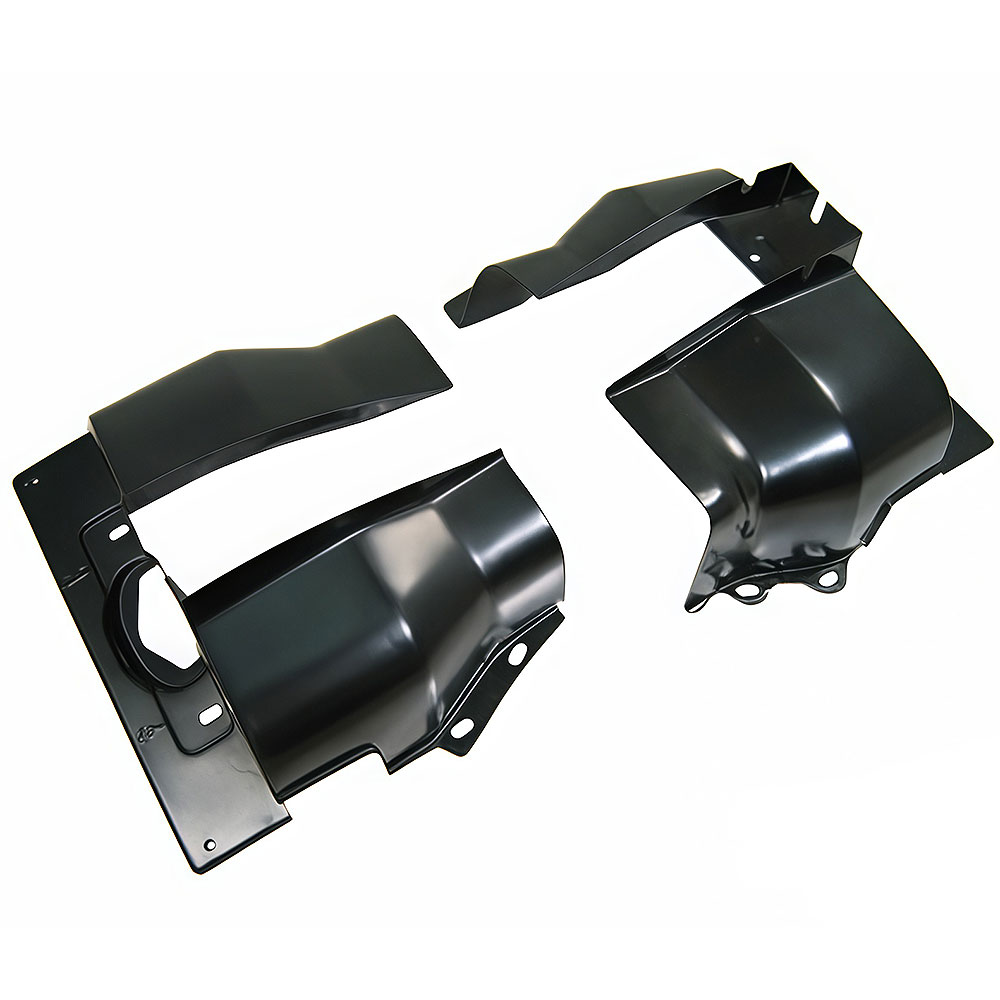

8867 | Single Port Cylinder Tin - Black | |
| 16 |
|
8878 | Single Port Cylinder Tin - Chrome |
