VW Tech Article: Type 1 Exhaust Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
028129087A | Heater Hose From Fan (Black) | |
| 1 |
|
028129087AS | Heater Hose From Fan (Silver) | |
| 2 |
|
MH28 | Hose Clamp | |
| 3 |
|
111-586 | 1963-67 Beetle Fresh Air Hose Base Seals | |
| 3 |
|
111-586B | 1968-79 Beetle Fresh Air Hose Base Seals | |
| 4 |
|
Not Available | Heat Riser Covers |
Not Available
|
| 5 |
|
Not Available | Heat Riser Insulation |
Not Available
|
| 6 |
|
8938 | Rear Engine Tin - Black - Heater Hose and Heat Riser | |
| 6 |
|
8936 | Rear Engine Tin - Black - Heater Hose | |
| 6 |
|
8937 | Rear Engine Tin - Black - Heat Riser | |
| 6 |
|
8939 | Rear Engine Tin - Black - No Cut-Outs | |
| 6 |
|
8940 | Rear Engine Tin - Chrome - Heater Hose and Heat Riser | |
| 6 |
|
8941 | Rear Engine Tin - Chrome - Heater Hose | |
| 6 |
|
8943 | Rear Engine Tin - Chrome - Heat Riser | |
| 6 |
|
8942 | Rear Engine Tin - Chrome - No Cut-Outs | |
| 7 |
|
113255165 | Connection Pipe | |
| 8 |
|
043298103 | Heater Box Lever Kit (Left/Driver) | |
| 8 |
|
043298104 | Heater Box Lever Kit (Right/Passenger) | |
| 9 |
|
113255341A | Muffler to Heater Box Clamp | |
| 10 |
|
043255105F | 1963-74 Heater Box (Left/Driver) | |
| 10 |
|
043255106F | 1963-74 Heater Box (Right/Passenger) | |
| 10 |
|
043255105G | 1975-79 Heater Box (Left/Driver) | |
| 10 |
|
043255106G | 1975-79 Heater Box (Right/Passenger) | |
| 11 |
|
3357 | J-Tubes - alternative to heater boxes (Black) | |
| 11 |
|
55-3357 | J-Tubes - alternative to heater boxes (Ceramic Coated) | |
| 11 |
|
3768 | J-Tubes - alternative to heater boxes (Stainless) | |
| 12 |
|
111298051 | Exhaust & Tail Pipe Clamp Kit | |
| 13 |
|
111298051 | Exhaust & Tail Pipe Clamp Kit | |
| 14 |
|
113251163D | 1955-67 10-Inch Chrome Tail Pipe | |
| 14 |
|
113251163G | 1968-74 9-Inch Chrome Tail Pipe | |
| 14 |
|
043251187B | 1975-79 Tail Pipe | |
| 15 |
|
111251051G | 1955-60 36HP Muffler | |
| 15 |
|
111251051L | 1961-63 40HP Muffler | |
| 15 |
|
111251051H | 1963-65 1200cc Muffler | |
| 15 |
|
113251053AK | 1966-73 1600cc Muffler | |
| 15 |
|
113251053AQ | (1972-73 California)(1974 NON-California) 1600cc Muffler | |
| 15 |
|
113251053BG | 1974 California Muffler | |
| 15 |
|
043251051B | 1975-79 NON-California Muffler | |
| 15 |
|
043251051C | 1975-79 California Muffler | |
| 16 |
|

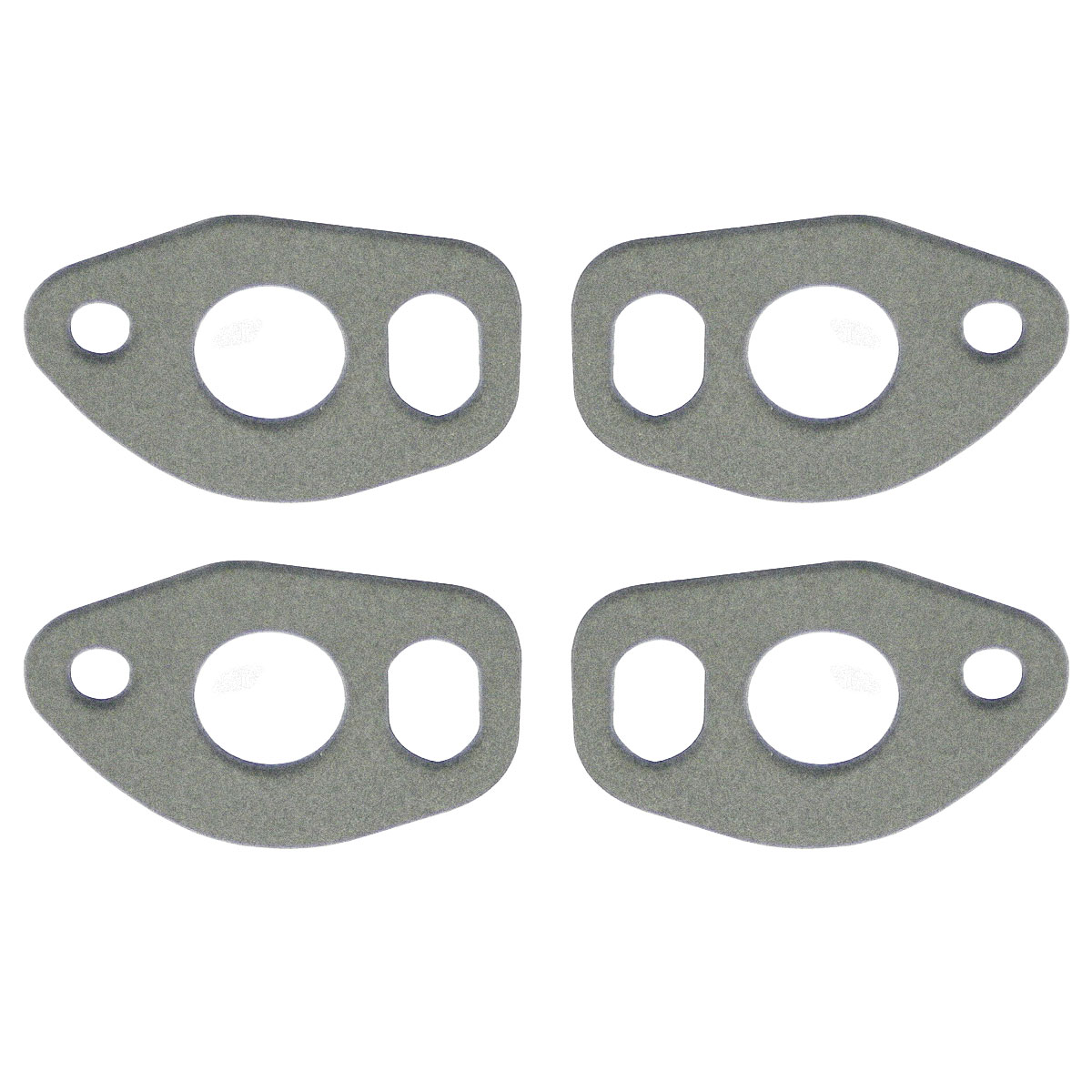

3392 | 1200-1600cc Heat Riser Gasket Set of 4 | |
| 16 |
|
113251263 | 1963-74 Pre-Heat Gasket | |
| 16 |
|
113251263B | 1974 California Pre-Heat Gasket |
